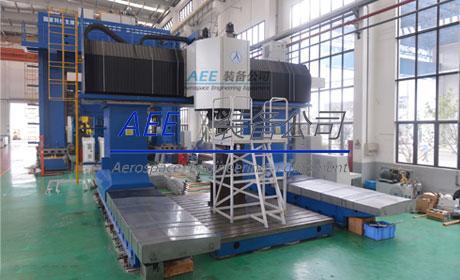

2D FSW machine

Stationary Gantry FSW Machine enables stable and reliable 1D & 2D curve welding, widely used for mass production of lightweight alloy products covering radiators, EV battery trays, water cooling plates in aerospace, 5G communication and power electronics industries.

Retail price

0.0

元

Market price

0.0

元

Number of views:

1000

Product serial number

Quantity

Stock:

Technical Specifications

Equipment Model			AEE FSW 20×23/2
Welding Thickness		(mm)	(7xxx Aluminum Alloy) Max 20
Worktable Size (Width × Length)		(mm)	2500 × 1500
Gantry Net Height		(mm)	100 ~ 600
Gantry Net Width		(mm)	1700
Travel Stroke	X-axis	(mm)	2300
	Y-axis	(mm)	1500
	Z-axis	(mm)	500
	C-axis	(°)	±360
	B-axis	(°)	0~5 (Manual)
Fast Moving Speed	X-axis	(mm/min)	7000
	Y-axis	(mm/min)	7000
	Z-axis	(mm/min)	3000
Spindle Maximum Speed		(rpm)	2500
Machine Outerline Dimension		(mm)	6330 × 3010 × 3750

Equipment Features

• The machine features stable construction and excellent rigidity.

• The machine is configured with a high-torque spindle and high-rigidity machine base, with expandable optional functions including constant pressure control, automatic laser weld tracking, automatic start-point tool setting, as well as welding parameter collection & extraction.
