Small two-dimensional stir friction welding equipment
Product Detail
Small static gantry type friction stir welding equipment can realize stable and reliable welding of 1D and 2D curved welds, which is widely used in processing of light alloy products in various industries.
Technical Specifications
|
Equipment Model |
HT-JM16×15/2 |
HT-JM16×23/2 |
HT-JM8×23/2 |
||
|
Welding thickness |
mm |
Aluminum alloy2~10/16 |
Aluminum alloy2~10/16 |
Aluminum alloy2~8 |
|
|
Working table size (W×L) |
mm |
1000×1500 |
1500×2500 |
1500×2500 |
|
|
Gantry pass height |
mm |
200~700 |
200~700 |
200~500 |
|
|
Gantry Passing Width |
mm |
1400 |
1700 |
1700 |
|
|
Itinerary |
X-axis |
mm |
1500 |
2300 |
2200 |
|
Y-axis |
mm |
1000 |
1500 |
1300 |
|
|
Z-axis |
mm |
500 |
500 |
300 |
|
|
C-axis |
° |
±360 |
±360 |
±360 |
|
|
B-axis |
° |
0~5 |
0~5 |
0~5 |
|
|
Fast Shift Speed |
X-axis |
mm/min |
3000/6000 |
3000/6000 |
8000 |
|
Y-axis |
mm/min |
3000/6000 |
3000/6000 |
8000 |
|
|
Z-axis |
mm/min |
2000 |
2000 |
3000 |
|
|
B-axis |
rpm |
Manual |
Manual |
Manual |
|
|
Maximum spindle speed |
rpm |
4000/2500 |
4000/2500 |
4000 |
|
|
Machine dimensions |
mm |
4600×2600×3800 |
6350×3050×3800 |
5800×3000×3350 |
|
Equipment Features
1、Stable structure and excellent rigidity.
2、The C-axis adopts worm gear transmission method, with good transmission rigidity.
3、Equipped with high torque spindle, high rigidity bed, and can be extended with constant pressure control, laser weld tracing, automatic tool setting at the starting point, and welding parameter acquisition and extraction functions.
Typical Applications
1、Main application areas: radiator electronic cold plate, automobile, power electronics.
2、All kinds of two-dimensional curved welding seam welding.

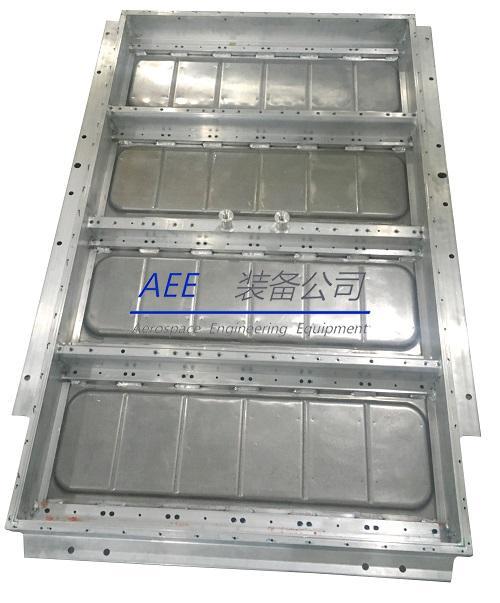

Welding Products
