C-type stir friction welding equipment
Product Detail
C-type equipment is suitable for flat two-dimensional stirring and friction welding of thin plate products, with a small footprint and stable structure.
Technical Specifications
|
Equipment Model |
HT-JC6×8/2 |
||
|
Welding thickness |
mm |
Aluminum alloy2~6 |
|
|
Working table size (W×L) |
mm |
600×800 |
|
|
Gantry pass height |
mm |
0~300（500） |
|
|
Itinerary |
X-axis |
mm |
800 |
|
Y-axis |
mm |
600 |
|
|
Z-axis |
mm |
300 |
|
|
C-axis |
° |
n×360 |
|
|
B-axis |
° |
0~5 |
|
|
Fast shift speed |
X-axis |
mm/min |
7000 |
|
Y-axis |
mm/min |
7000 |
|
|
Z-axis |
mm/min |
3000 |
|
|
B-axis |
rpm |
Manual |
|
|
Maximum spindle speed |
rpm |
4000 |
|
|
Machine dimensions |
mm |
2700×2600×2700 |
|
Equipment Features
1、Compact structure of the equipment, good rigidity, small occupation space, easy to transport.
2、Maximum welding thickness of 6mm with high cost performance.
3、It can be extended with constant pressure control, laser weld tracing, automatic tool setting at the starting point and welding parameter acquisition and extraction functions.
Typical Applications
1、Applicable to new energy vehicle battery water-cooling plate, electric drive, motor water-cooling set, electronic radiator and other products.
2、Main application areas: new energy automobile industry, electronic industry.

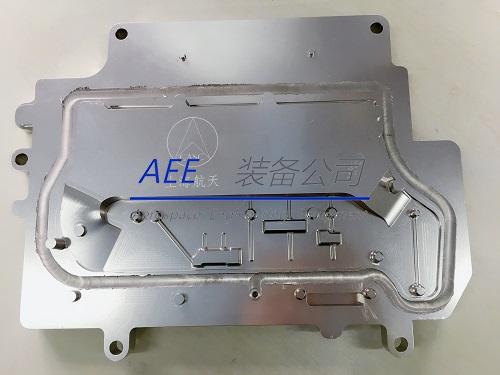

Welding Products
