One-dimensional heavy-duty friction stir welding equipment
Product Detail
This equipment is mainly used for large thickness connection parts such as hook seats in rail train bodies. The equipment has good rigidity, stable welding, and the welding thickness can reach 50 mm.
Technical Specifications
|
Equipment Model |
HT-JM50×40/1 |
||
|
Welding thickness |
mm |
Aluminum alloy3~50 |
|
|
Working table size (W×L) |
mm |
2000×4000 |
|
|
Gantry pass height |
mm |
100~900 |
|
|
Gantry Passing Width |
mm |
2500 |
|
|
Itinerary |
X-axis |
mm |
4000 |
|
Y-axis |
mm |
2000 |
|
|
Z-axis |
mm |
800 |
|
|
B-axis |
° |
0~5 |
|
|
Fast shift speed |
X-axis |
mm/min |
3000 |
|
Y-axis |
mm/min |
3000 |
|
|
Z-axis |
mm/min |
1000 |
|
|
B-axis |
rpm |
Manual |
|
|
Maximum spindle speed |
rpm |
1000 |
|
|
Machine dimensions |
mm |
11000×6500×4500 |
|
Equipment features
1、The spindle adopts four-sided ring-holding square ram structure and high hardness plane hard rail, with strong rigidity.
2、The cross beam and bed are made of high strength castings, large diameter screw and multiple roller guide drive to enhance the overall welding stability.
Typical applications
Rail transit car body connection parts (car hook seat)

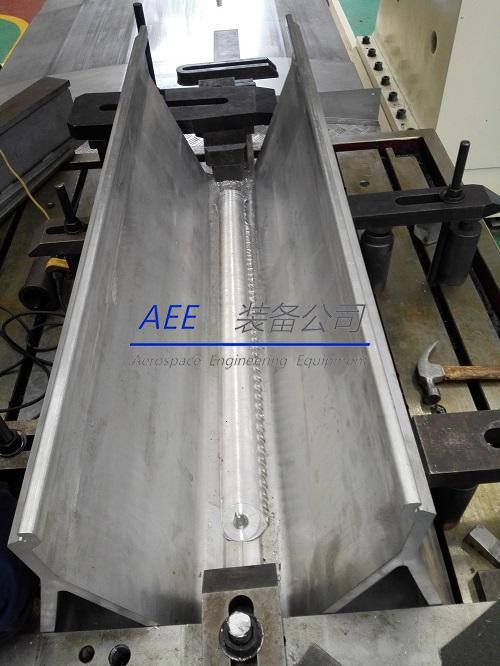

Welding products
